Matrox QID
AGP 8x,
quad-display graphics card
Last updated: 2006.03.24

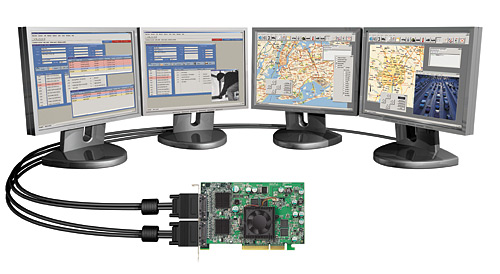

The Matrox QID graphics card is designed for AGP 8x systems and supports
up to 4 digital or analog monitors at a time. Providing extra reliability and
performance, a single Matrox-designed graphics chip controls all displays and
supports AGP natively. With the quality, features, and support provided by
Matrox, this product is ideal for mission-critical applications like
computer-aided dispatch, process control, and security
monitoring.
| Key features |
 |
Support for up to 4 digital
or analog monitors at a time (in "independent"* or "stretched"
mode) |
|
AGP 8x card compatible with
all compliant AGP 4x and 8x systems |
|
128 MB graphics
memory |
|
Matrox UltraSharp Display
Output Technology |
|
1600 x 1200 maximum
resolution per display * |
|
Unified Microsoft Windows
2000 and Windows XP display driver for Matrox QID Series graphics
cards |
|
Easy-to-use Matrox
PowerDesk driver interface |
|
Matrox Clone to view a copy
of one display on the other displays |
|
Display pivoting
(rotation) |
|
Support for displays with
special aspect ratios |
|
Support for customizable
unattended installation for rapid multi-system setup |
|
Global sales and technical
support |
|
3-year
warranty |
A digital monitor is any monitor using a digital signal with a
DVI connector, typically a flat panel. An analog monitor is any computer
monitor using an analog signal with an HD-15 or DVI connector, typically an
analog flat panel or a CRT. * The resolution of each display must be the
same.
|
|
The Matrox QID graphics
card has a single Matrox-designed graphics chip to control up to 4 displays at a
time and provide full native AGP 8x
support. |
| Hardware
included |
|
Matrox QID graphics
card |
|
2 LFH60-to-DVI dual-monitor
adapter cables (1-foot) |
|
4 DVI-to-HD15 connector
adapters |
| Software
included |
|
Matrox display driver for
Microsoft Windows 2000 and Windows XP ¢Ó |
|
Matrox PowerDesk (driver
interface and utilities) | ¢Ó Drivers for Windows Server 2003 and
Windows XP X64 (64-bit) available
online. For other possible operating systems, contact
Matrox.
| Optional
upgrades |
|
Dual-TV-output adapter
cable (composite video and S-video, 1-foot) |
|
LFH60-to-DVI dual-monitor
cable (6-foot) |
| Specifications |
|
Part number:
QID-QDA8X128 |
|
Card type: AGP 8x, compatible with all
compliant AGP 4x and 8x systems (1.5 or 0.8 V) |
|
Graphics memory: 128
MB |
|
Bracket connectors: LFH-60 x
2 |
|
Card form factor: ATX |
|
Bracket form factor:
ATX |
|
EMC certifications: Class A
– ACA, CE, CSA, FCC, VCCI |
|
Card size: 6.5" x
4.3" |
| |
(Card size = length, not
including bracket and bracket connector x height, including slot connector. Card
width is within specifications for a single card of the given
type.) | |
|
|
|
|
